- 14.5 - 24.5 in. rim diameter
- 3.94 in. min rim hole diameter
- 58 in. max tire diameter
- 27 in. max width
- 1,545 lbs. max weight
- 9 rpm CW & CCW
- 208-240V, 1ph, 60Hz, 20A
Safe and fast tire changers for big tires
Heavy-Duty
Heavy-Duty Tire Changers
Powerful tire changers for big tires
Whether your need is a capable, efficient machine for semi-truck tires, or a tire machine that will change skidder tires, Hunter has a model to suit. The TCX635HD outpaces any tire changer for over-the-road truck tires with none of the fatigue and safety risk of bars and hammers. The TCX645HD can do all that, plus handle implement tires up to 90 inches in diameter.
Features at-a-glance
-
Tulip-style wheel clamp
-
Safe controls
-
Roller Demounting
-
Standard Hook
Hunter Heavy-Duty Tire Changers
/
Thomas Tire relies on Hunter to maintain trust with HD and commercial customers
Customers have long relied on Thomas Tire in Asheville, NC to take care of their HD vehicles, says co-owner Sally Thomas. In turn, Thomas relies on Hunter equipment to maintain that trust. “Our dad was always a firm believer in investing in quality, and that’s what we’ve done,” she says.
TCX635 Heavy Duty Tire Changer
Plenty of power and speed to change even the most difficult HD truck tires easily and safely.
The Hunter TCX635HD Tire Changer
See the easy-to-use features of the Hunter TCX635HD tire changer that help technicians properly service heavy-duty wheel assemblies.
TCX645HD Heavy Duty Tire Changer from Hunter Engineering
TCX645HD Quick Ops-Road Wheels
Watch the process of demounting and mounting road wheels on the Hunter TCX645HD heavy-duty tire changer.
TCX645HD Quick Ops-Skidder Wheels
See how easy it is to properly and safely service skidder wheels on the Hunter TCX645HD heavy-duty tire changer.
PRODUCT FAMILY AT A GLANCE
TCX635HD
Extra torque, extra speed
TCX645HD
Truck tires to skidders
- 14 - 46 in. rim diameter
- 3.94 in. min rim hole diameter
- 90.5 in. max Diameter
- 42 in. max width
- 2,200 lbs. max weight
- 10 & 5 rpm CW, CCW
- 230V, 3ph, 60Hz, 26A
TCX635HD FEATURES
Operator-friendly design
- Low risk - No hammers, no bars, no lifting very heavy tires
- Low service height - Easy to roll on and no fear of tire falling off during demounting
- Optional ramps - Popular "plus" model includes ramps, and mounting bar
Superior wheel accommodation
- Easy match mounting - Rotate tire on rim when needed for the smoothest ride
- Specialty rim friendly - Standard hook can be used to mount and demount challenging tires and rims without fear of damage
- Simple controls - Easy to use levers control all operations in a convenient and safe operator position
- Versatile jaws - Secure small center holes, thick wide-based alloy wheels, centerless wheels, and much more
Powerful tools to assist
- Fast and easy rollers - Most tires can be pushed on and off, no switching tools
- Inner "drop roller" - Speeds service times, never a need to remove to make room
- Hydraulic carriage - Maximum power and fast tool positioning
Tulip-style clamp
Quickly & easily clamp assemblies with no damage to the wheel
All-in-one controls
Houses all user operations, pivots to allow flexibility, and height is adjustable (two positions)
Bead-breaking rollers
Quickly & easily break tire beads with no wheel damage. Drop roller saves time.
Technician safety
The TCX635 functions close to the ground to keep heavy tires at a safe height.
Easily service special assemblies
Use the standard hook attachment to mount and demount tubed or sharp edged wheels, or other more difficult assemblies.
TCX645HD FEATURES
Operator-friendly design
- Mobile controller - Full access to controls when servicing the front or back of large assemblies. (Wireless optional)
- Low risk - Use powerful tools instead of bars and hammers. No lifting of very heavy assemblies
Superior wheel accommodation
- Versatile jaws - Clamp center holes as small as 3.94 in, or rims as large as 46"
- Optional skidder clamp - Useful when servicing difficult skidder style double drop center wheels
- Spring loaded hook / disc roller - Mount and demount the toughest tires with minimal risk of rim damage
Convenient functions
- Two speeds - Select high speed for bead loosening or easy assemblies. Use low speed for the tough ones
- Speed carriage quickly - Shuttle the carriage from front to rear of the rim
- On-board storage - Keep standard and optional accessories organized

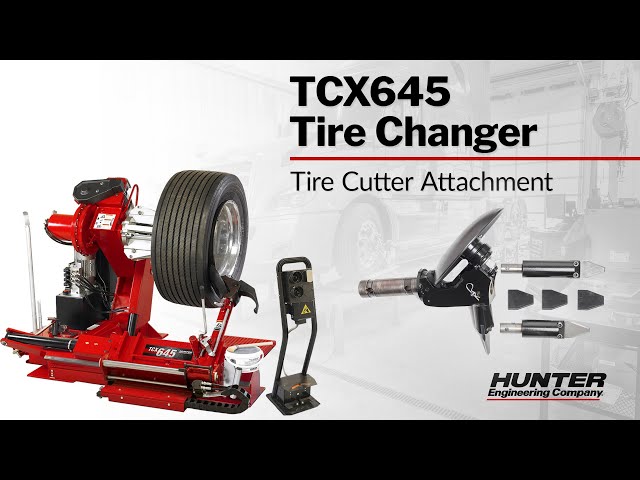

Tire cutter attachment
Quickly and easily cut apart foam filled tires for disposal.
Pedestal control unit
Integrated tool storage
Integrated tool storage is conveniently located on the tire changer base, increasing operating efficiency and helping prevent damage and loss.
Tulip-style clamp
Tulip system provides universal, self-centering, standard clamping capacity of 14 to 46 inches. Two-speed chuck rotation operates clockwise and counter-clockwise.
Mount & demount with ease
Tractor, implement and other specialty wheel assemblies are serviced using the same tools and techniques.
Match-mounting is easy!
When combined with Hunter's heavy-duty wheel balancers, the heavy-duty tire machines provide match-mounting capability for achieving the smoothest possible ride.
Specifications
|
|
|||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gallery
Because of continuing technological advances, features and configurations shown in customer photos may vary.
